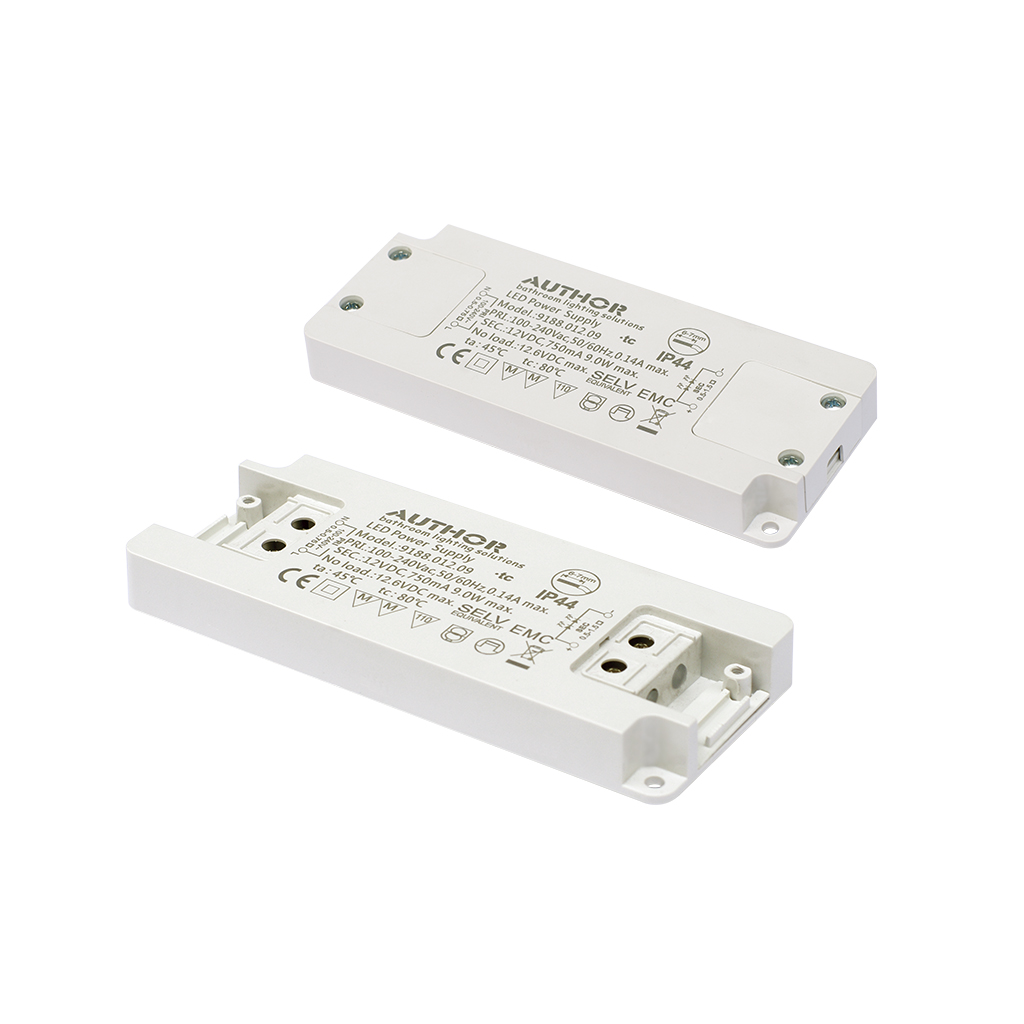

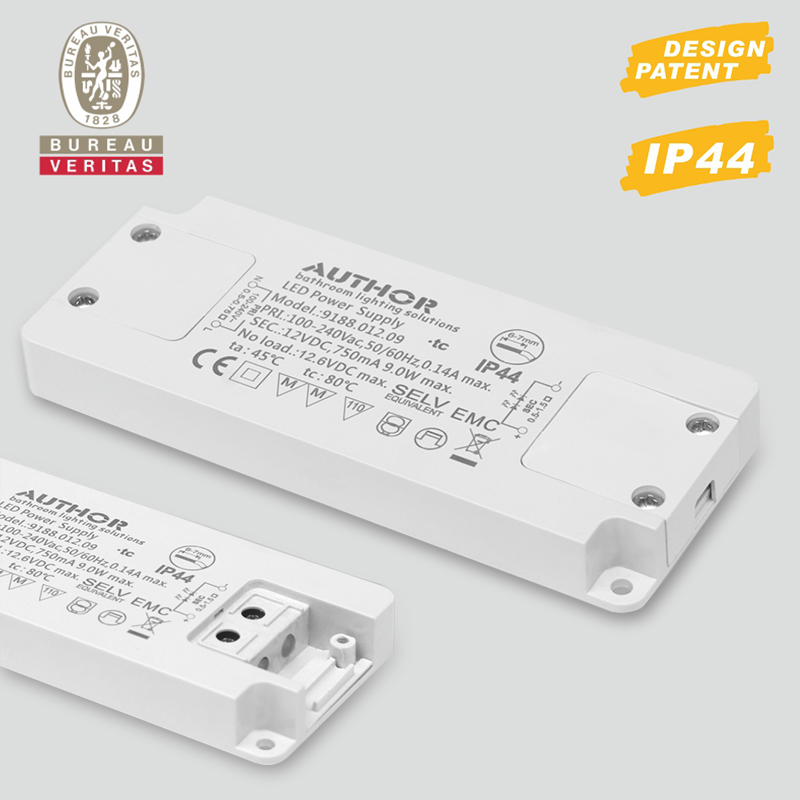

IP44 waterproof 13mm thickness super slim LED driver, LED power supply 9188
    Publish time 2016-07-27 17:30
Our super slim LED driver has both constant voltage(CV) and constant current(CC) operating modes

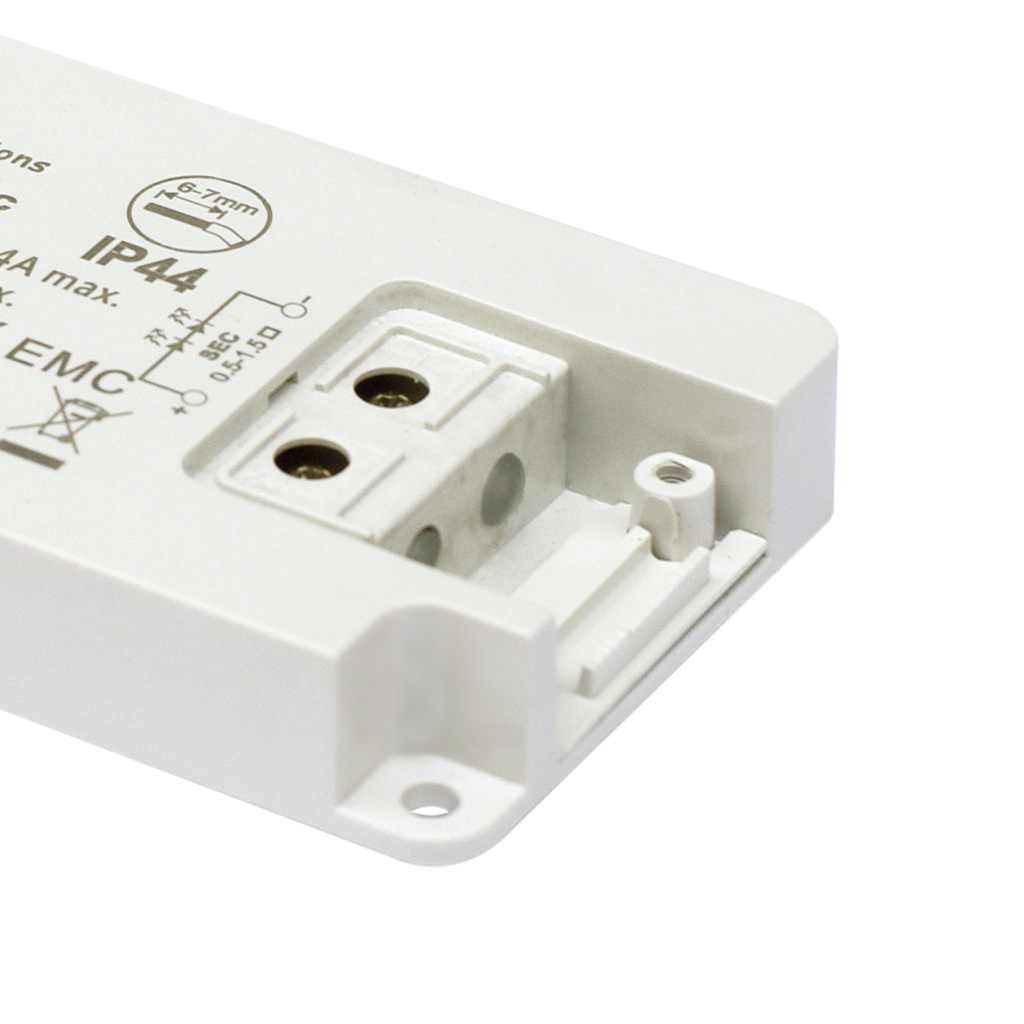

It is for wiring directly without junction box IP44 waterproof rated; IP23 as extra option, ideal for use with kitchen cabinet lights
Input and output cable length can be adjusted per requirements
IP44 waterproof 13mm thickness super slim LED driver, LED power supply 9188

100-240VAC, 50/60Hz

  • Size : L128*W52*H13mm

  • Operating output voltage(CV) : 12V/24V(6W/9W/15W available to match)

  • Operating output current(CC) : load range 250mA~1050mA(6W/9W/15W available to match)

  • Degree of accuracy : ±5%

  • IP Rating : IP44(IP23 as optional)

  • Mounting : surface mounting, screw fixing included or with adhesive tape on the back

  • Standards : EN61347-1/EN61347-2-13/EN61000-3-2/EN61000-3-3/EN61547/EN62493/EN62384



Key Points : We have design patent for this driver, it's super slim type. We've already got EMC/LVD/EMF certificates from BV test labs.
